Boat Trailer Lights, LED Trailer Light Kit with Trailer Wire, Amber Trailer Marker Lights, LED Trailer Lights for Camper Truck Snowmobile

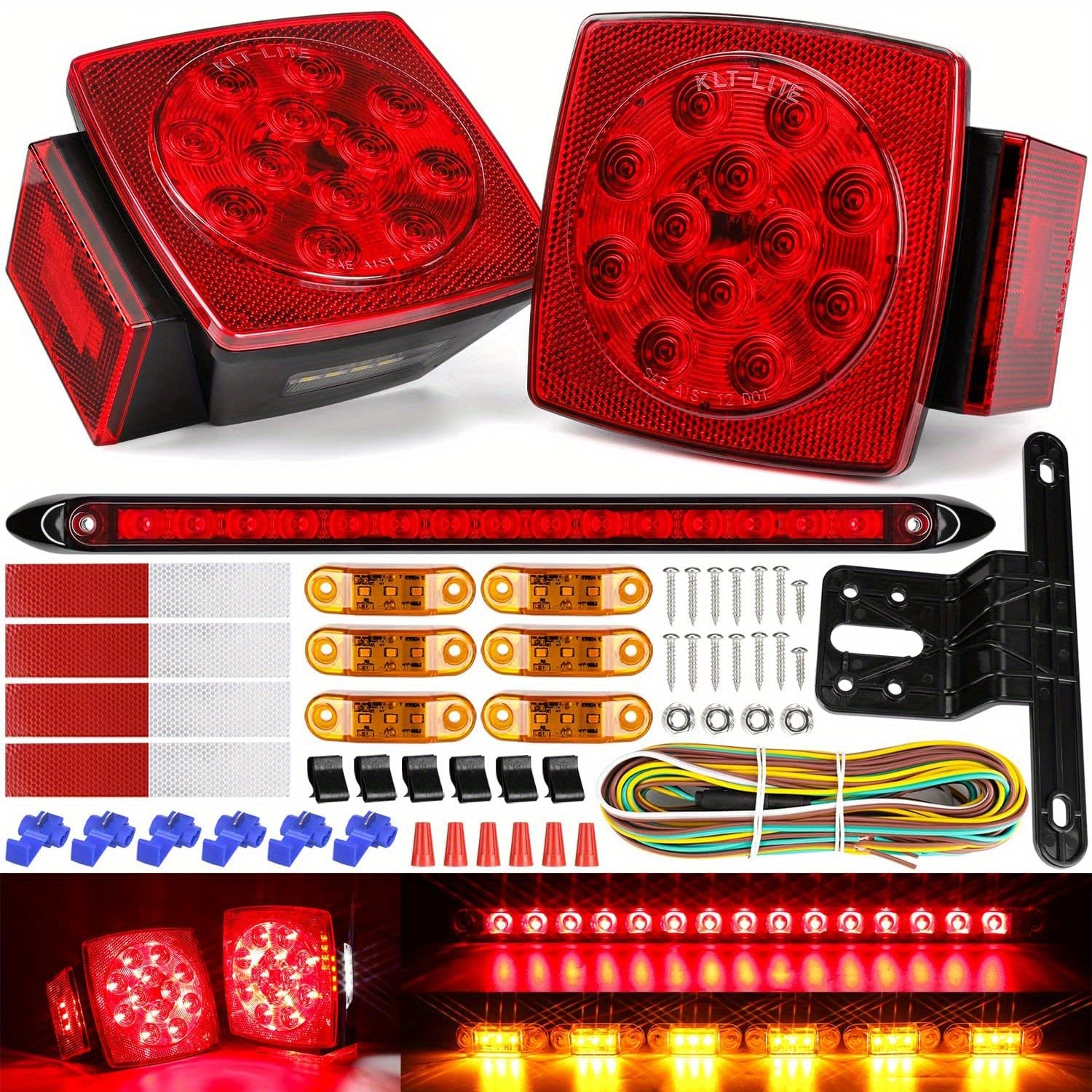

Uses for the Trailer Tail Lights kit include direct welding or bolting onto the frames of trucks, trailers, tractors, semi-trailers, horse trailers, travel trailers, dump trucks, and special vehicles that are under 80 inches wide. The package contains: 2 running/stop/tail/turn LED tail lights, 6 amber clearance lights, 1 13.8-inch trailer third brake identification light bar with a license plate bracket and mounting hardware, a 29-foot trailer wire harness, and 4 reflective stickers.

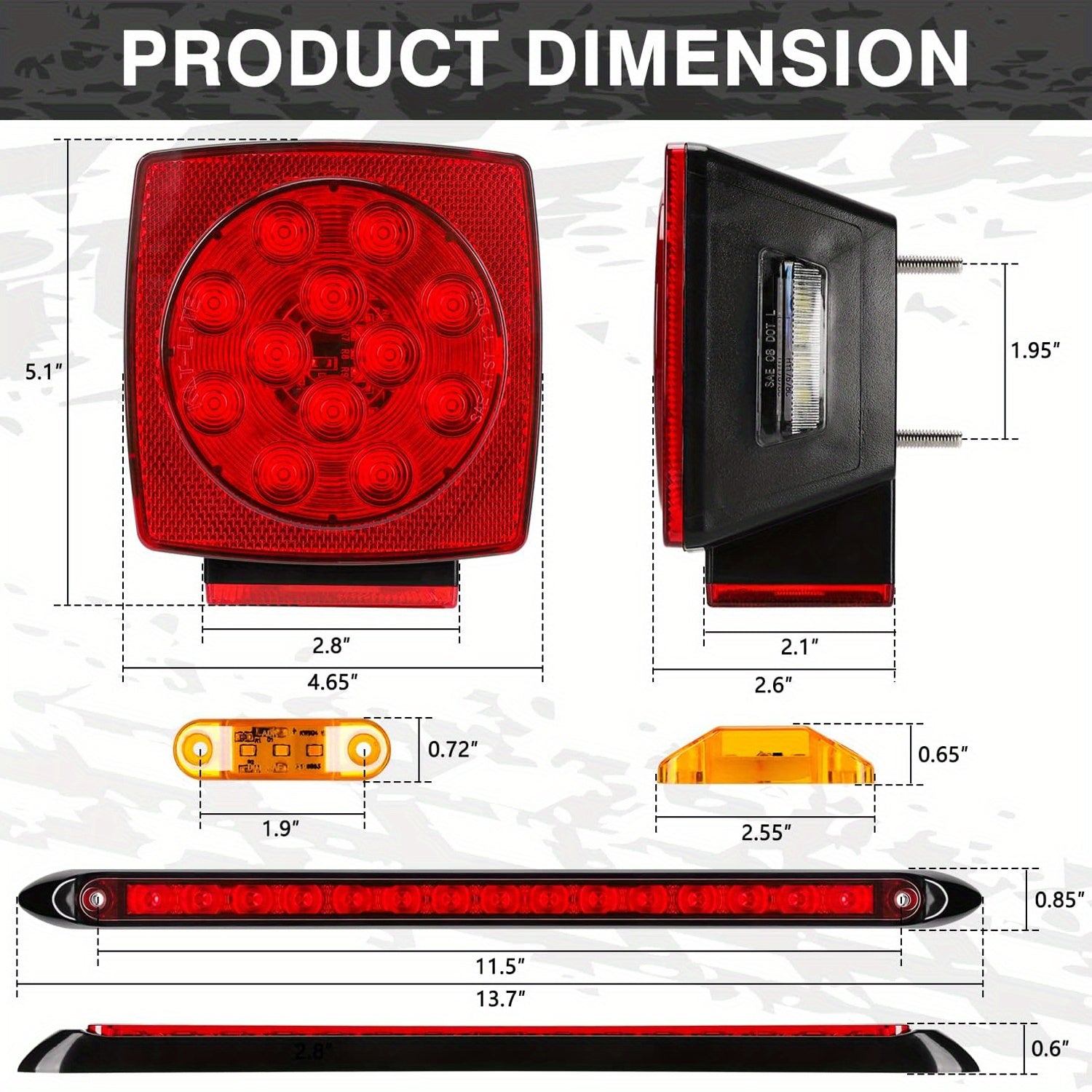

Power Supply: 12V DC. Light Colors: Red, White, Amber. Dimensions of Square Light: 4.65 x 5.1 x 2.6 inches. Dimensions of Side Fender Light: 2.55 x 0.65 x 0.72 inches. Dimensions of Light Bar: 13.7 x 0.6 x 0.85 inches. Versatile Functionality: serves as running light, stop/brake light, turn signal light, backup reverse lights, and more.

According to the manual: On the left side, the white wire serves as the ground (negative), while the white and yellow wires provide high brightness for the front. The white and brown wires indicate low brightness for the three side. On the right side, the white wire is also the ground (negative), with the white and green wires offering high brightness for the front, and the white and brown wires indicating low brightness for the two side. For the oval side fender marker lights, the black wire is the ground (negative) and the red wire is positive. This also applies to the trailer's third brake identification tail light bar.

White Wire: Ground (Negative); White Wire + Red Wire: High Intensity, utilized for Stop & Turn Light; White Wire + Brown Wire: Low Intensity, used for Running Light.

The Super Bright trailer light kit features extremely high brightness, utilizing all LED diodes, which have a longer lifespan compared to incandescent lights.

Serves as a running light, stop light, brake light, turn signal, reverse light, flashlight, rear reflector, side marker light, side reflector, license plate light, clearance light, and identification light bar.
